scriptcast

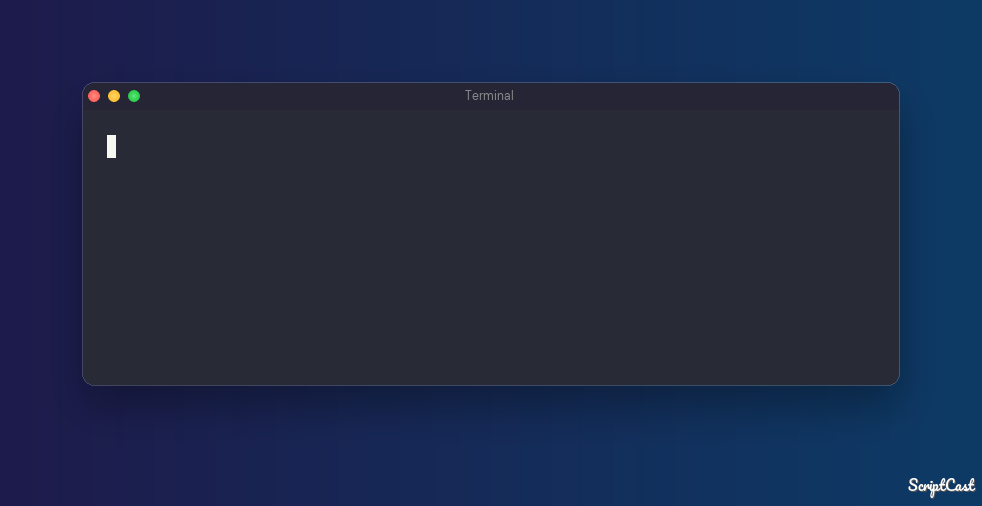

scriptcast demo

Generate terminal demos (asciinema casts & GIFs) from annotated shell scripts.

scriptcast turns a shell script into a reproducible, polished terminal demo — with typing animations, multiple scenes, mocked commands, interactive sessions, output filtering, and more.

Background
Install
Usage
Examples
Script Syntax
Similar Projects
Contributing
License

Background

Terminal demos are hard to reproduce. Screen recordings drift, manual re-runs produce different output, and polishing timing or hiding sensitive paths requires video editing.

scriptcast treats demos as code. You write a shell script annotated with SC directives — controlling scenes, typing speed, mocked commands, interactive expect sessions, and output filters — then run a two-stage pipeline:

Record — the script executes with shell tracing enabled; raw output is captured and written to a JSONL .sc file containing timestamped cmd, output, input, and directive events.
Generate — the .sc file is read by a streaming renderer that synthesises a polished asciinema .cast file with typing animations and timing.

The .sc file is plain text, version-controllable, and diffable. Re-generating a cast from an existing .sc is instant.

Install

pip install scriptcast

Requires Python 3.10+. For GIF output, install agg.

From source

git clone https://github.com/dacrystal/scriptcast.git
cd scriptcast
pip install -e .

Usage

scriptcast demo.sh          # record → generate → export (PNG by default)
scriptcast demo.sc          # generate → export (skip record)
scriptcast demo.cast        # export only

scriptcast --no-export demo.sh   # record + generate only, no image
scriptcast --format gif demo.sh  # export as GIF (requires agg)
scriptcast install               # install agg binary and fonts

Key flags:

Flag	Default	Description
`--output-dir PATH`	same dir as input	Where to write output files
`--no-export`	off	Stop after generating `.cast`; skip image export
`--format [gif\\|png]`	`png`	Export format
`--theme TEXT`	`dark`	Built-in theme name or path to `.sh` theme file
`--directive-prefix PREFIX`	`SC`	Directive prefix used in scripts
`--trace-prefix CHAR`	`+`	PS4/xtrace prefix
`--shell PATH`	`$SHELL`	Shell used for recording
`--split-scenes`	off	Write one `.cast` file per scene
`--xtrace-log`	off	Save raw xtrace capture to `<stem>.xtrace`

Examples

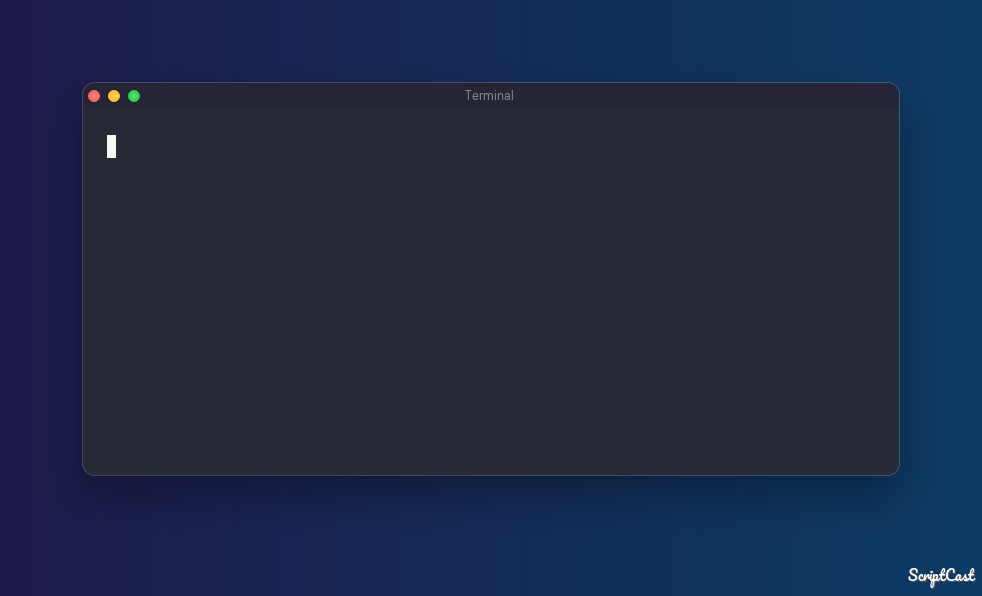

examples/showcase.sh — a realistic three-scene demo: interactive login, mocked deploy, status check with filter.

showcase

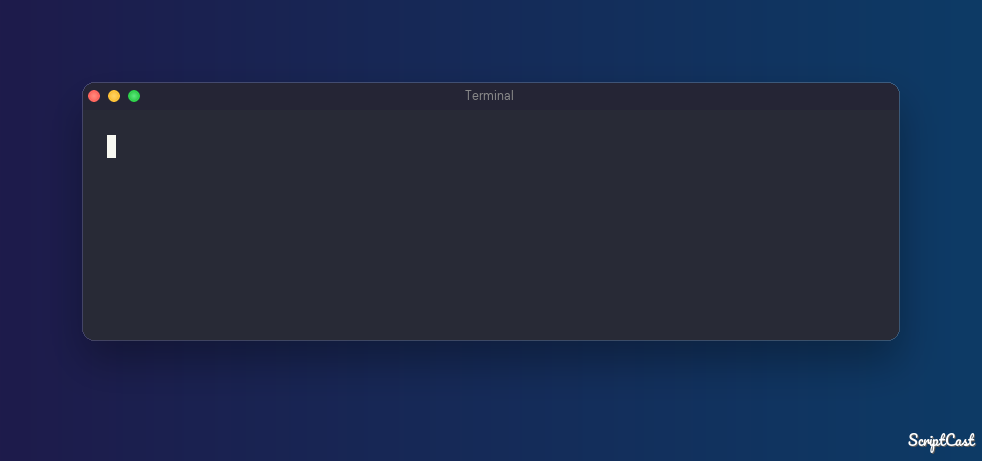

examples/tutorial.sh — one scene per directive: mock, expect, filter, comment, sleep, word_speed, record pause/resume.

tutorial

Themes

Built-in themes: dark (default), aurora, light. Pass --theme <name> or a path to a custom .sh theme file.

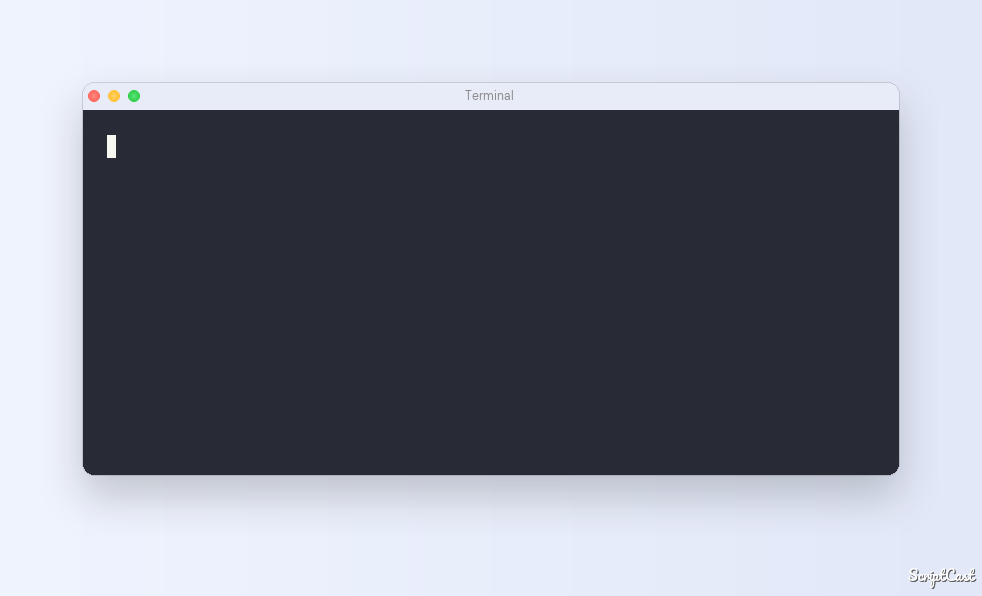

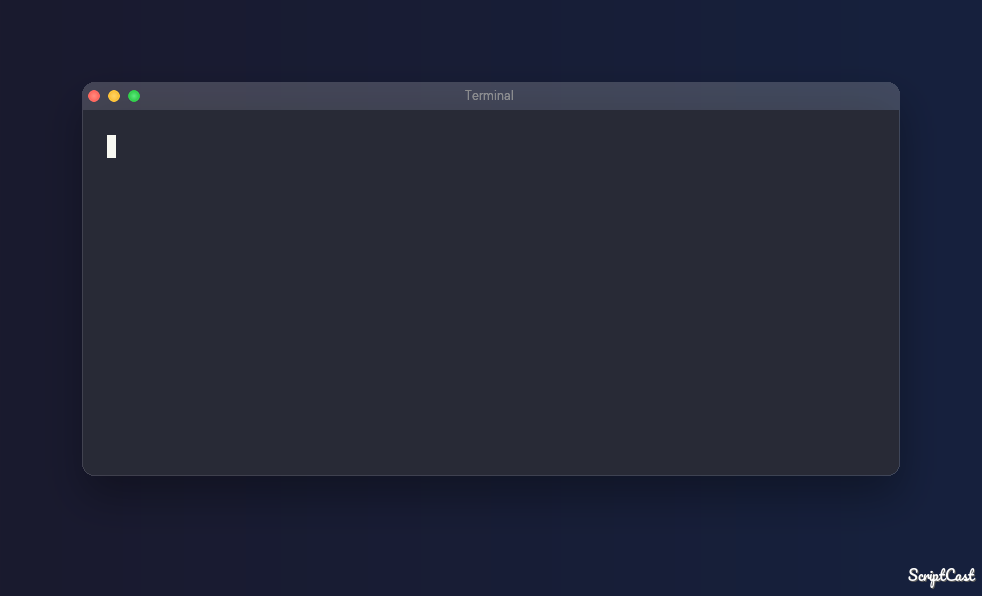

`--theme dark`	`--theme aurora`	`--theme light`

Script Syntax

Scripts are valid shell scripts. SC directives are embedded as shell no-ops (: SC ...) so they execute harmlessly but appear in the xtrace output for the recorder to process.

#!/usr/bin/env scriptcast

# Global config — applied before any scene
: SC set type_speed 40
: SC set width 80
: SC set height 24

# ── Scene: intro ──────────────────────────────
: SC scene intro

echo "Hello from scriptcast"

# ── Scene: mock ───────────────────────────────
: SC scene mock

: SC mock deploy <<'EOF'
Deploying to production...
Build: OK
Tests: OK
Deploy: OK
EOF

deploy

# ── Scene: expect ─────────────────────────────
: SC scene expect

: SC expect ./my-app <<'EOF'
expect "Password:"
send "secret\r"
expect "prompt>"
send "quit\r"
expect eof
EOF

# ── Scene: filter ─────────────────────────────
: SC scene filter

: SC filter sed 's#/home/user/projects#<project>#g'

pwd

# ── Scene: comment ────────────────────────────
: SC scene comment

: SC '\' This is a visual comment
echo "comments appear as prompt lines in the cast"

# ── Scene: setup (not recorded) ───────────────
: SC scene setup

: SC record pause
DB_URL="postgres://localhost/mydb"
: SC record resume

echo "Connecting to $DB_URL"

Recorder directives

These are consumed during recording and never appear in the .sc file.

Directive	Description
`SC mock <cmd> <<'EOF'` … `EOF`	Mock `<cmd>` so it prints fixed output during recording
`SC expect <cmd> <<'EOF'` … `EOF`	Run an interactive session via expect(1)
`SC record pause`	Stop capturing output (commands still execute)
`SC record resume`	Resume capturing
`SC filter <cmd> [args...]`	Replace the current output filter with a shell command (stdin→stdout)
`SC filter-add <cmd> [args...]`	Append a command to the current filter chain
`SC '\' <text>`	Emit a `# text` comment line in the cast (visual annotation)
`SC helpers`	Inject ANSI color variables (`RED`, `YELLOW`, `GREEN`, `CYAN`, `BOLD`, `RESET`) silently into the script

`SC expect` syntax

The heredoc body is a standard expect script. scriptcast preprocesses it to capture typed input and clean up spawn noise. Inputs sent with send are recorded as input events; silent inputs (e.g. passwords read with read -rs) produce silent animations.

: SC expect ./fake-db <<'EOF'
expect "Password:"
send "secret\r"
expect "mysql>"
send "show databases;\r"
expect eof
EOF

Generator directives

These are stored in the .sc file and interpreted during cast generation.

Directive	Description
`SC scene <name>`	Start a new scene
`SC set <key> <value>`	Set a timing or display config key
`SC sleep <ms>`	Pause for N milliseconds

Config keys (`SC set`)

Key	Default	Description
`type_speed`	`40`	ms per character when typing commands
`cmd_wait`	`80`	ms after a command is typed, before output
`input_wait`	`80`	ms to pause before typing interactive input
`enter_wait`	`80`	ms at the start of each scene, after clearing
`exit_wait`	`120`	ms after the last output line of a scene
`width`	`100`	Terminal width (columns)
`height`	`28`	Terminal height (rows)
`prompt`	`$`	Prompt string shown before commands
`word_speed`	same as `type_speed`	Extra ms pause after each space when typing
`cr_delay`	`0`	ms between `\r`-split segments (for progress-bar animations)

When using ANSI escape sequences in prompt, use ANSI-C quoting so the shell interprets the escapes before scriptcast sees them:

: SC set prompt $'\033[92m> \033[0m'

Similar Projects

VHS — declarative .tape DSL for scripted terminal recordings; outputs GIF, MP4, WebM
Terminalizer — record a live terminal session and render it as a GIF or HTML player
asciinema_automation — automate asciinema recordings using pexpect and comment directives
demo-magic — bash function library for simulated typing in live terminal presentations

What makes scriptcast different:

Shell-script-native — the demo source is a real, runnable .sh file, not a DSL or config format. Directives are no-op shell comments that execute harmlessly.
Two-stage pipeline — record and generate are separate. Re-rendering with different timing or themes is instant, no re-recording needed.
Version-controllable — the .sc file is plain JSONL, diffable and reviewable in git.
Mocking and expect — SC mock and SC expect let you script slow, side-effectful, or interactive commands without running the real thing.
Output filters — SC filter pipes captured output through any shell command to scrub paths, tokens, or hostnames before they reach the cast.

Contributing

Issues and pull requests are welcome at github.com/dacrystal/scriptcast.

Before opening a PR, ensure:

All tests pass: uv run pytest
New behaviour is covered by tests
